PX1
Features:
v Support any machine vision camera into ITS application.
v GigE vision composite waterproof connector & cable.
v Wide Range Power Input from 10~30 VDC.
v Compact bollard design for parking lot.
v Available for embedded usage.
Applications:
v Car parking
v Automatic number plate recognition
v Traffic integrated device
Item Number | PX1_10 | PX1_20 | PX1_30 | PX1_D |

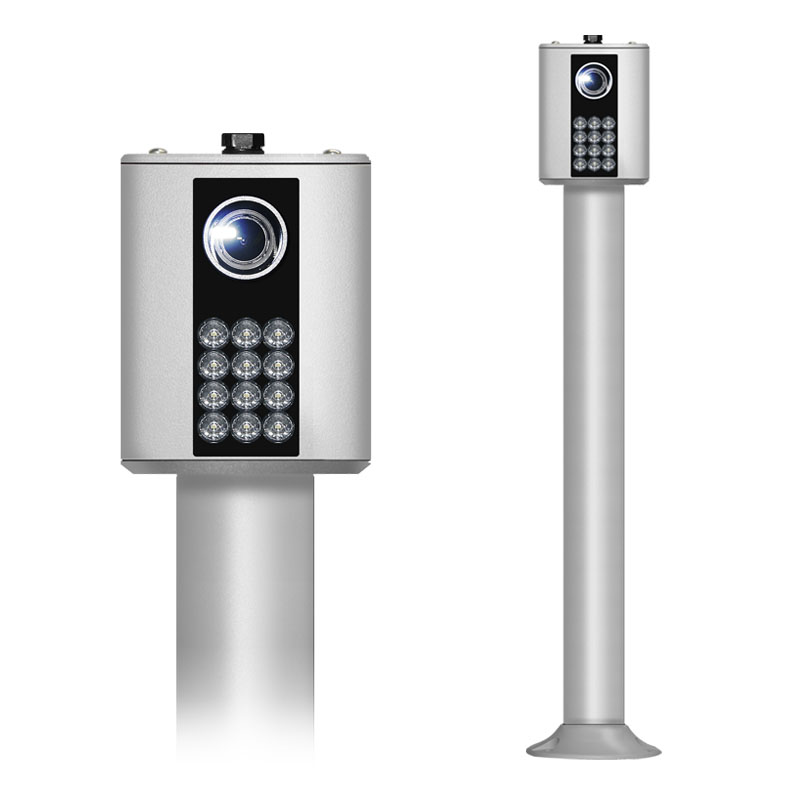

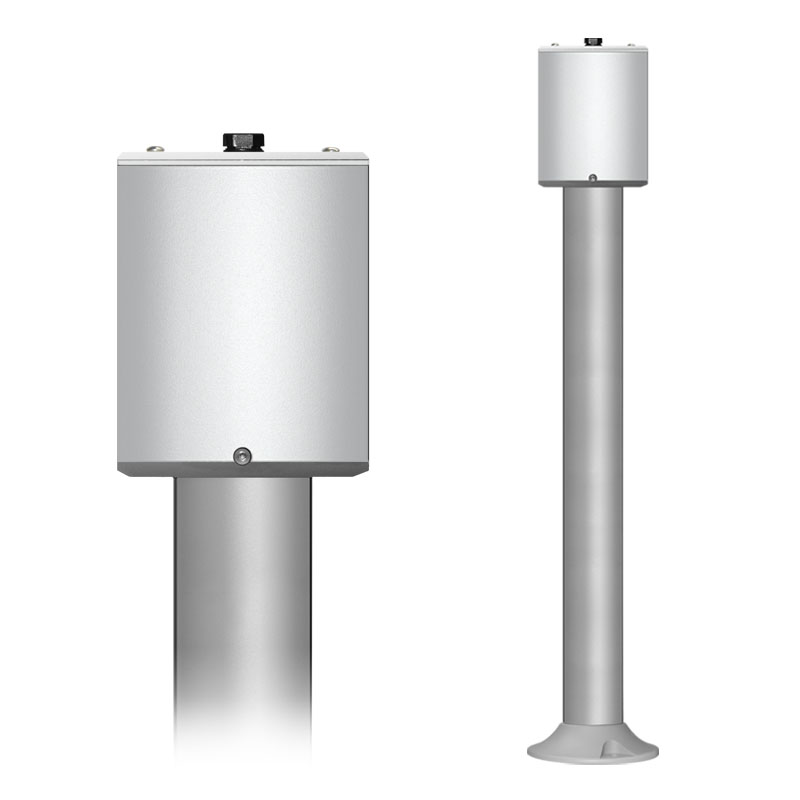

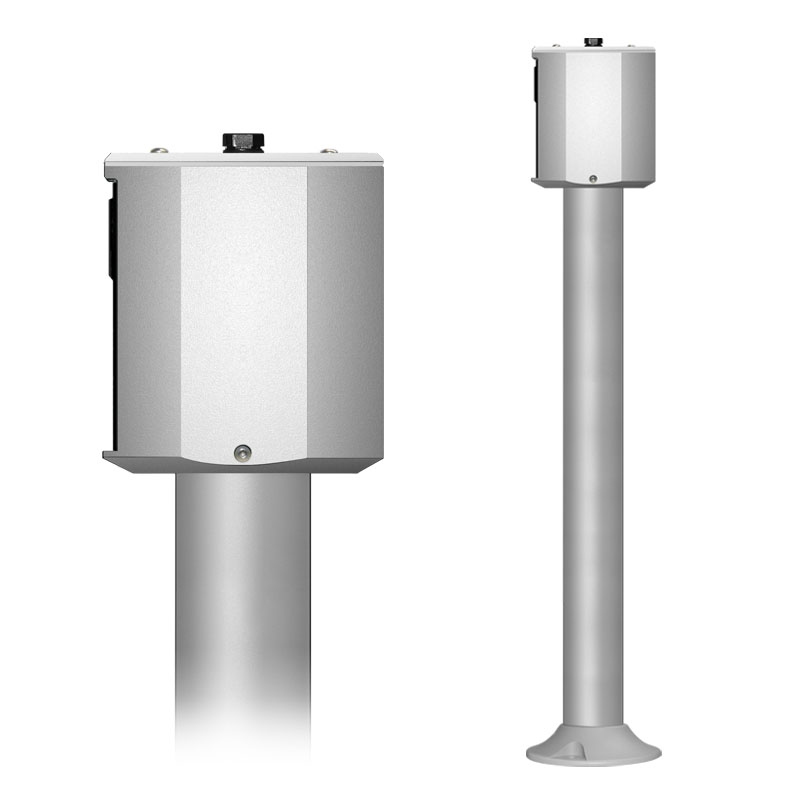

Product’s Name | Intelligent Bollard Strobe Illuminator | |||
Illumination Source | Latest High Power Technology LEDs | |||
Wavelength | 3000K Warm White | |||
Distance | 2 to 10m | |||
Trigger Modes | 1. Simple Mode (Strobe combine with continuous limit pulse) 2. Intelligent Mode (Trigger width = Flash width) 3. C.C.S (Continued Combine Strobe) | |||
Max. Trigger Frequency | 100 kHz | |||
Max. Pulse Width | 0.1-1.6ms | |||
Trigger input opto isolated | DC3.3V to 24V opto-isolated | |||
Beam Angle | 10 | 20 | 30 | H40 x V15 |
Control/ Communication | RS485 interface | |||
Operating Temperature (°C) | -20~+60 degree (cold start at -40 degree) | |||
Weather Proof | IP66 | |||
Power Requirement | DC12~24V/ 1A | |||
