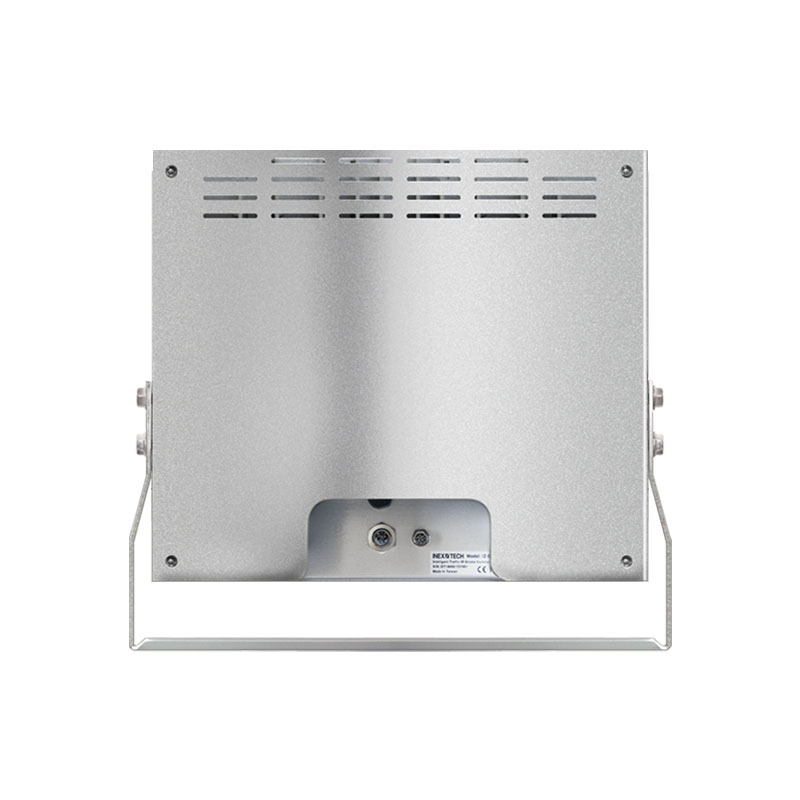

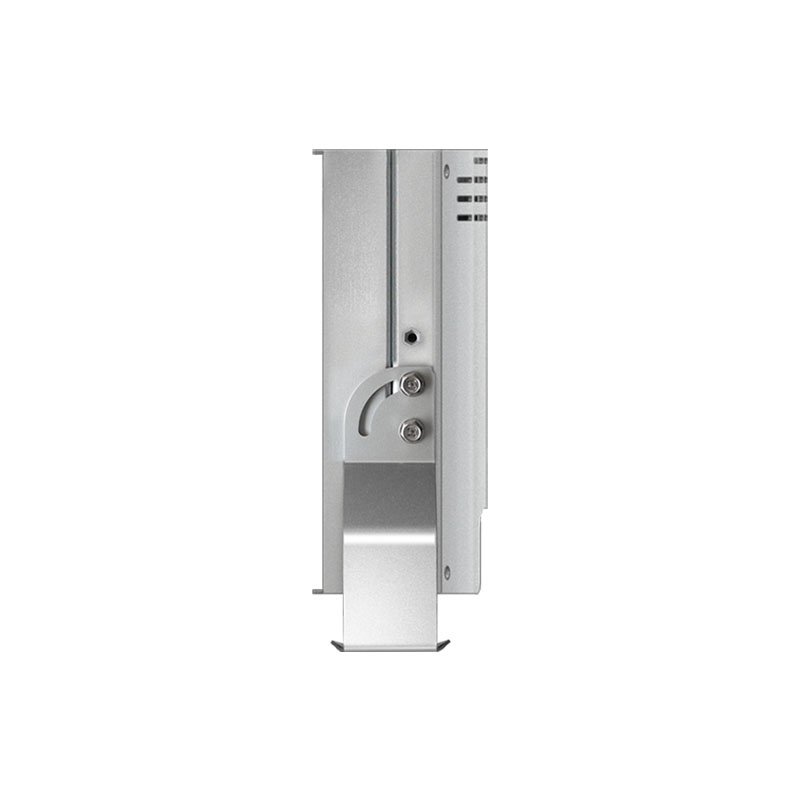

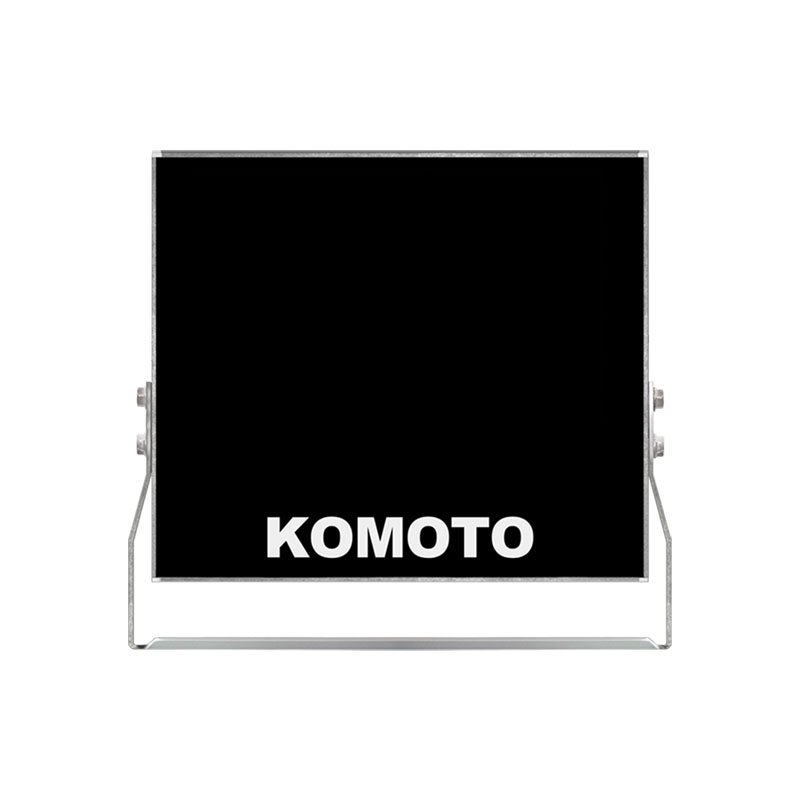

S2-N
Features:
v Compact with Integrated LED Light Source.
v Auto detects the trigger width with flash duation.
v Stack effect Design for more efficiency by reducing heat.
v Extra long life with very low maintenance.
v IP66 housing for outdoor installation.
Applications:
v Traffic speed management
v Speed enforcement
v Vehicle type identification
v Automatic number plate recognition
v Rail container scanning
v Toll management systems
v Weigh in motion
Item Number | S2-N | S2_20-N | S2_D-N |
Product’s Name | Intelligent Traffic IR Strobe | ||
Wavelength | NIR 850 nm | ||
Illumination Source | Latest High Power Technology LEDs | ||
Light Drive Power-Pulsed | 1200W | ||
IR Effective Range | 30 to 40m (ANPR Model) | ||
Trigger Modes | 1. Simple Mode (Strobe combine with continuous limit pulse) 2. Intelligent Mode (Trigger width = Flash width) 3. C.C.S. (Continued Combine Strobe) | ||
Max. Trigger Frequency | 10 kHz | ||
Max. Pulse Width | 0.1-1.6ms | ||
Trigger input opto isolated | DC3.3V to 24V opto-isolated | ||
Beam Angle (Degree) | 10 | 20 | H40xV15 |
Control/ Communication | RS485 interface | ||
Operating Temperature (°C) | -25~+60 degree (cold start at -40 degree) | ||
Weather Proof | IP66 | ||
Power comsumption | 30W | ||
Power Requirement | DC12~24V / 2.5A | ||
Dimension | (L)296x (W)271 x (H)91 mm | ||
Net Weight | 3.6 Kgs | ||
Gross Weight | 4.1 Kgs | ||
