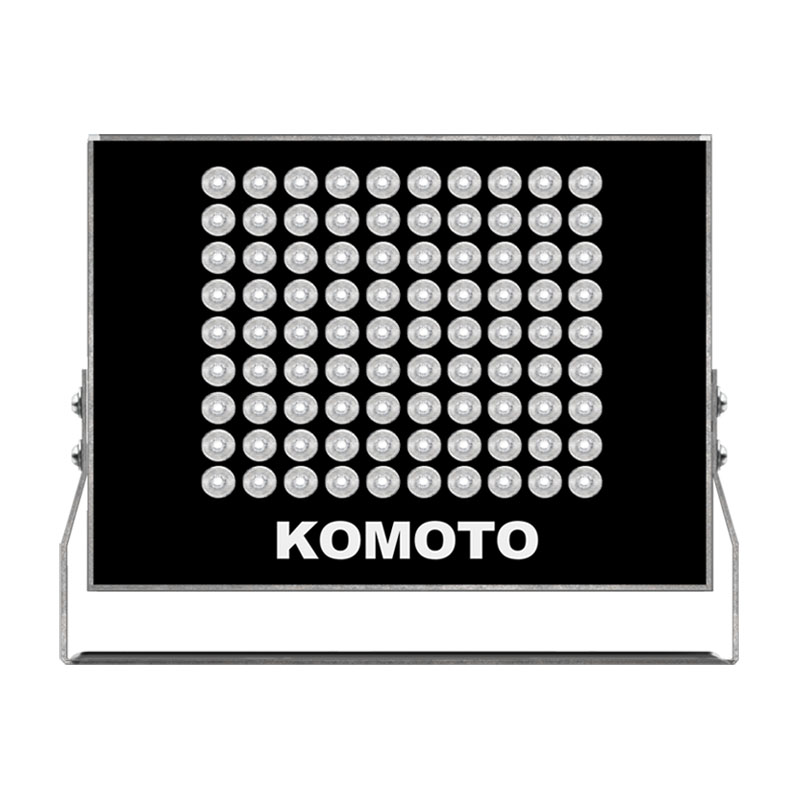

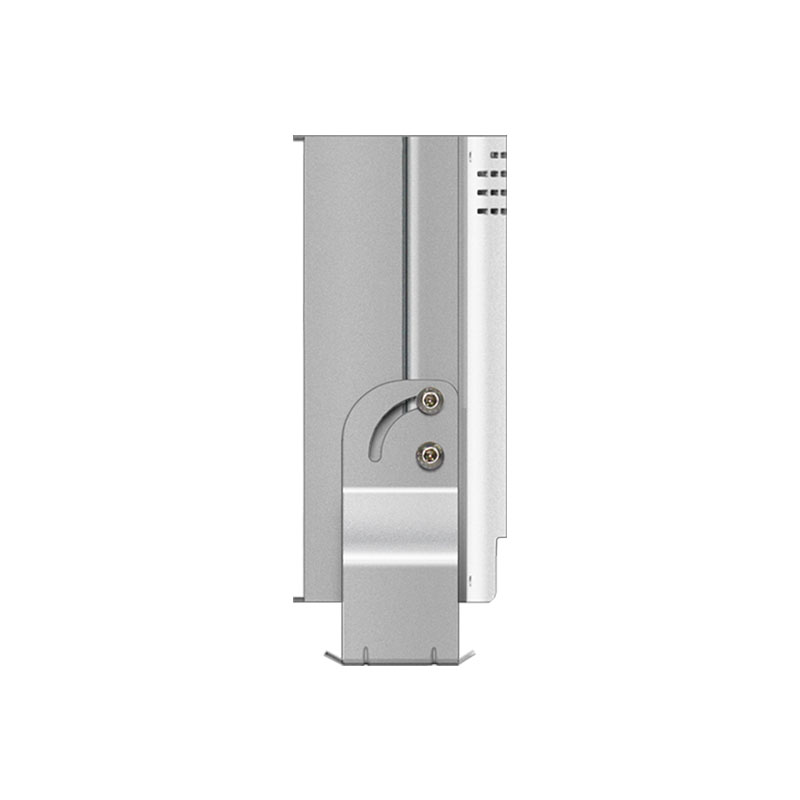

SJ3-N
Features:
v Compact with Integrated LED Light Source.
v Auto detects the trigger width with flash duation.
v Stack effect Design for more efficiency by reducing heat.
v Extra long life with very low maintenance.
v IP66 housing for outdoor installation.
Applications:
v Face recognition behing windshield
v Automatic number plate recognition
v Toll management systems
v Weigh in motion
v HOV (High Occupancy Vehicle)
v Speed enforcement
Item Number | SJ3_10-N | SJ3_20-N | SJ3_D-N |
Product’s Name | Intelligent Traffic LED Strobe Illuminator | ||
Wavelength | 760 nm | ||
Illumination Source | Latest High Power Technology LEDs | ||
Distance | 25 to 35m (ANPR model) | ||
Trigger Modes | 1. Simple Mode (Strobe combine with continuous limit pulse) 2. Intelligent Mode (Trigger width = Flash width) 3. C.C.S. (Continued Combine Strobe) | ||
Max. Trigger Frequency | 10 kHz | ||
Max. Pulse Width | 0.1~1.6ms | ||
Trigger input opto isolated | DC3.3V to 24V opto-isolated | ||
Beam Angle | 10 degree | 20 degree | H40xV15 degree |
Control/ Communication | RS485 interface | ||
Operating Temperature (°C) | -20~+60 degree (cold start at -40 degree) | ||
Weather Proof | IP66 | ||
Power Requirement | DC 24V/ 4.5A | ||
